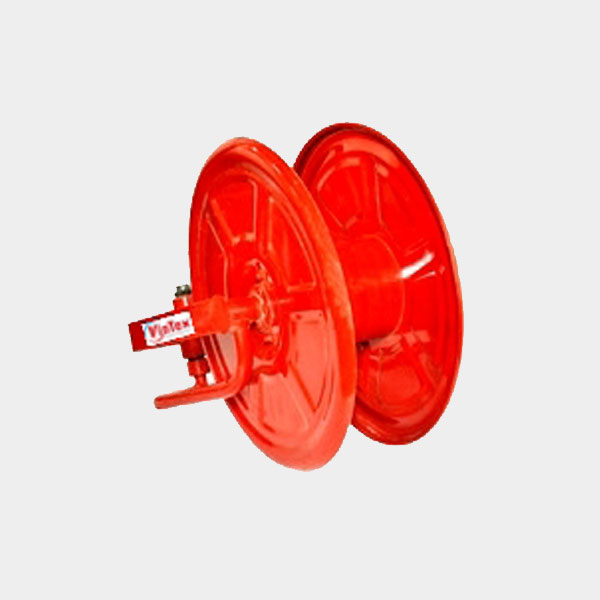

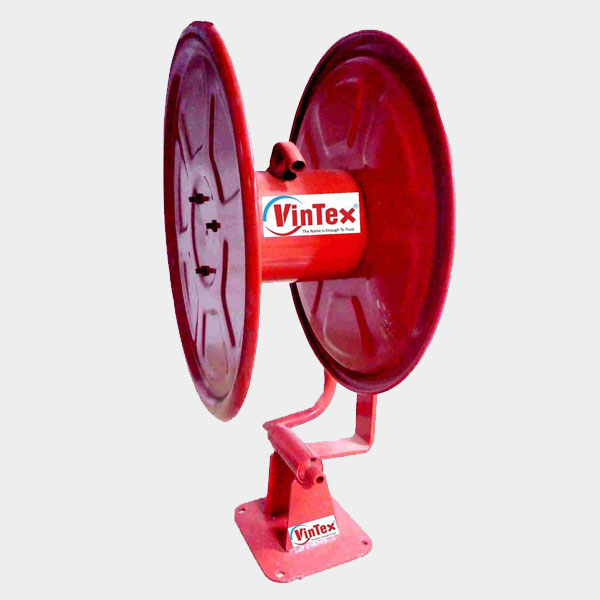

First Aid Hose Reel Drum
First Aid Hose Reel Drum
First Aid Hose Reel Drum
First Aid Hose Reel Drum
Technical Specifications
Size Swinging 180° Wall Mounting
Sizes Inlet 20mm (¾" BSP Thread Size)
Material
  • Hub Sides & Wall Bracket -M.S. Sheet of IS:513
  • Swivel Joint -LTB-2 of IS:318
  • Pipe with Fitting -Steel of IS:1239 Part I

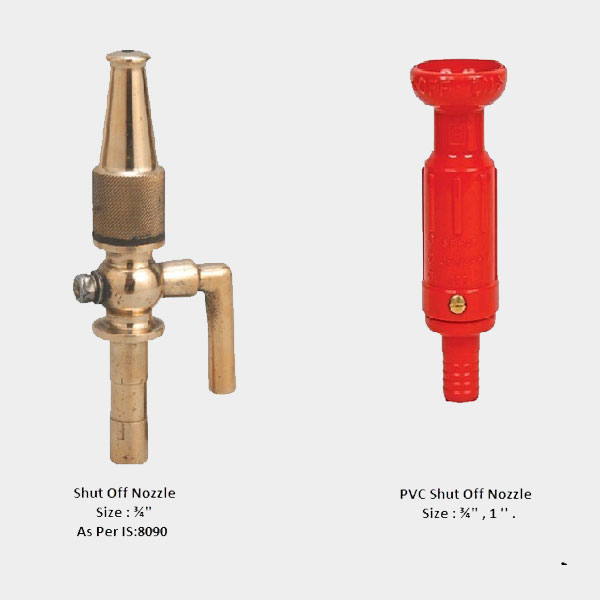

  • Branch Pipe with Nozzle -IS:8090
  • Hose Reel Tubing -Hydraulic Rubber Hose Conf to IS:444
Conforming Specification IS 884
Performance Test
  • Hydrostatic Test : Tested at 21 Kgf/cm2
  • Range & Water Flow rate test at 7 Kgf/cm2
  • (A) Discharge : 24LPM
  • (B) Range (Jet Length) : 6mtr(min)
