Technical Specification

Brass construction for Model MV-A and MV-AS
Stainless Steel construction for Model MV-B and MV-BS
Aluminium Bronze construction for Model MV-E
Size 1/2" BSPT or NPT
Open orifice design used in deluge water spray system
Non-automatic fixed pattern, external deflector
Solid cone discharge
Several combination of different orifice sizes & spray angles
K-factor(Metric) - 18, 22, 30, 35, 41, 51, 64, 79, 91 & 102
K-factor(US) - 1.26, 1.54, 2.10, 2.45, 2.87, 3.57, 4.48, 5.53, 6.37 & 7.14
Spray angle - 65°, 80°, 90°, 100°, 110°, 120° & 140°
Each Nozzle body permanently marked with model number, batch number, spray angle, K-factor & UL mark
Finish - Brass, Bright Nickel Chrome or Natural Finish
Approvals - UL Listed and FM Approved
FM Approved Blow-Off Plug

HYDRANT & ACCESSORIES

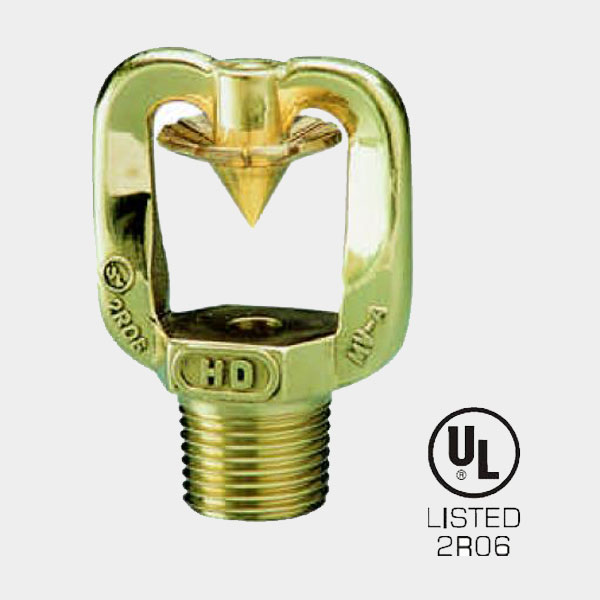

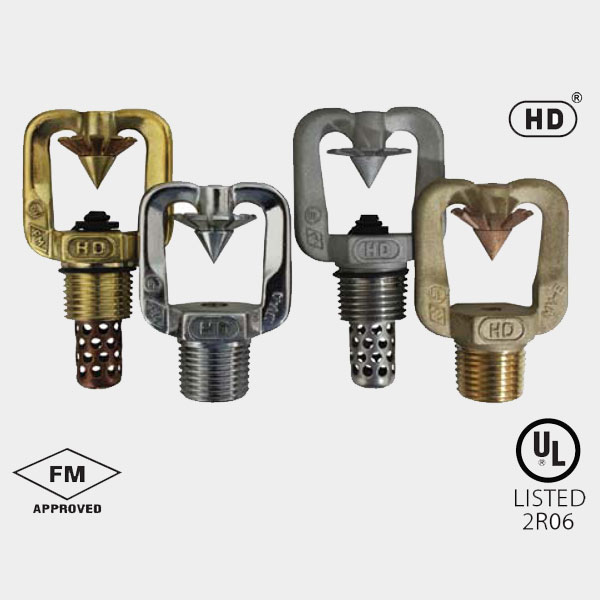

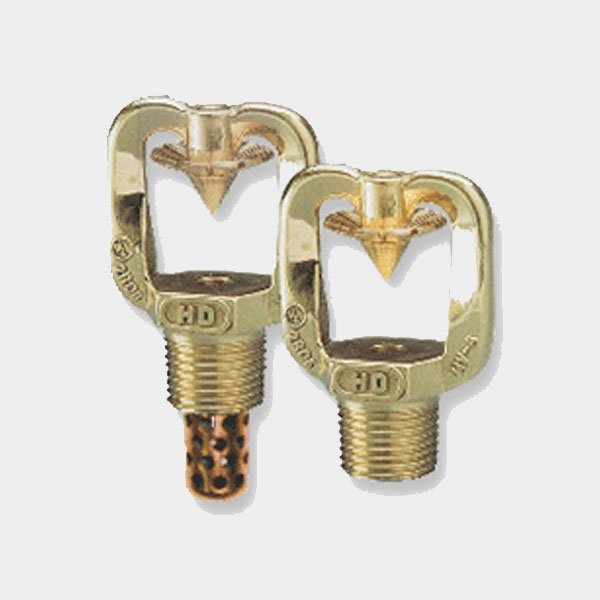

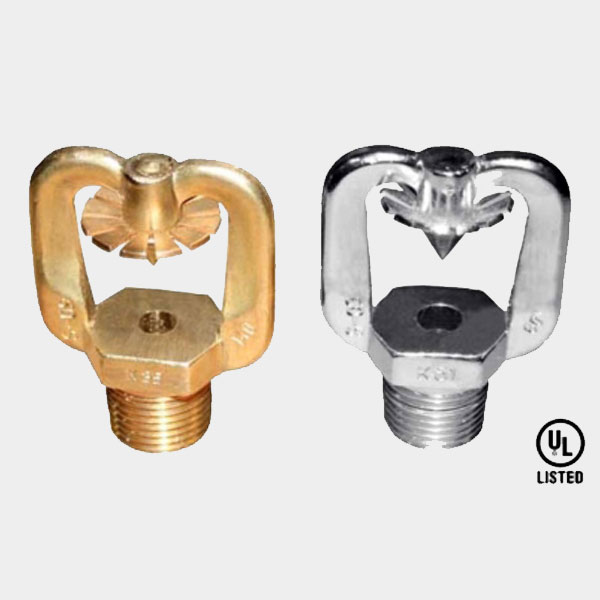

Medium Velocity Spray Nozzles
