Technical Specification

Size 1/2" BSPT / NPT
Open orifice used in deluge water spray system
Non-automatic fixed pattern external deflector
Solid cone discharge in the opposite direction of water inlet
Combination of different orifices & spray angle
K-Factor : Metric - 22, 30, 35, 41, 51, 64, 91 & 102
K-Factor : US - 1.54, 2.10, 2.45, 2.87, 3.57, 4.48, 5.53, 6.63 & 7.14
Spray angle - 120° & 140°

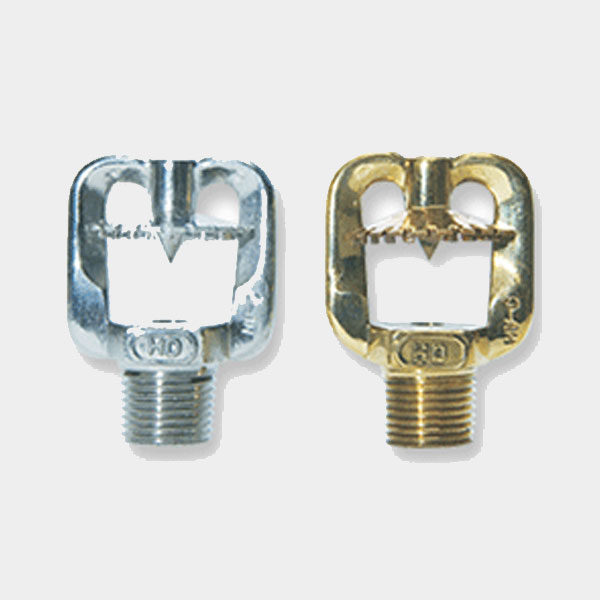

Brass finish or Chrome plated
Nozzles are permanently marked with Model No., Batch No., Spray Angle & K-Factor

HYDRANT & ACCESSORIES

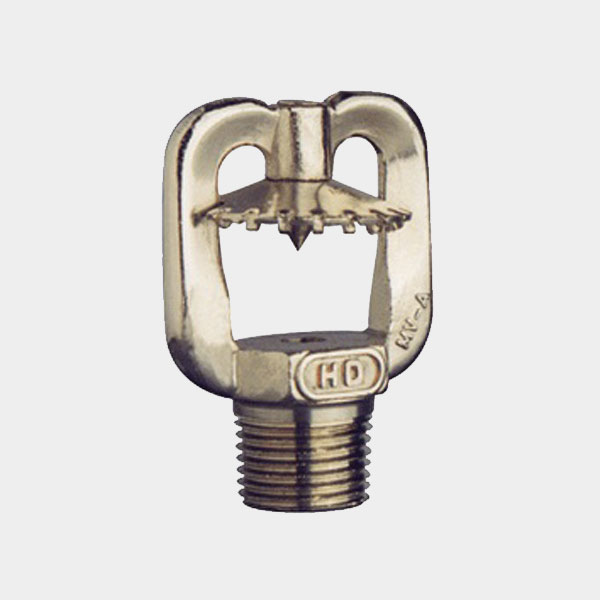

Reverse Action Water Spray Nozzle
